PROJECT TYPE: Low-Income Housing

PROJECT NAME: Hotel Hamlin

Project Type: Multi-Unit Low-Income Housing (Rehab)
Construction: Type III B Non-Conforming
Occupancy: R-1, B
Stories: 6 Stories + Basement
Units: 69 Single Occupancy Units

PROJECT SCOPE

• Seismic retrofit
• New heating & ventilation system upgrades
• New PVC roof with elevated walkway
• New elevator, mechanics, mechanical room (on roof) & cab
• New community room & kitchen
• New shared showers & kitchens
• Unit & bathroom upgrades
• Accessibility improvements throughout
• Energy efficiency improvements to meet TCAC requirements
• Window replacement (replace like kind, same size)
• New light fixtures (replace with LED fixtures)
• New exterior paint



REVISION TO PERMIT - REAR YARD DECK

Prior to construction, the narrow existing rear yard was used for some flower beds and discarded bike storage. As part of the building renovation, a new Ipe deck was built with LED string light above.

For the revision to the original permit set, I prepared the drawings and documents and then acquired approval stamps at each relevant station.

BEFORE

AFTER

  • PRESENTATIONS

    During the design development phase, one of my responsibilities was preparing presentations for client and resident meetings.

  • DRAWINGS

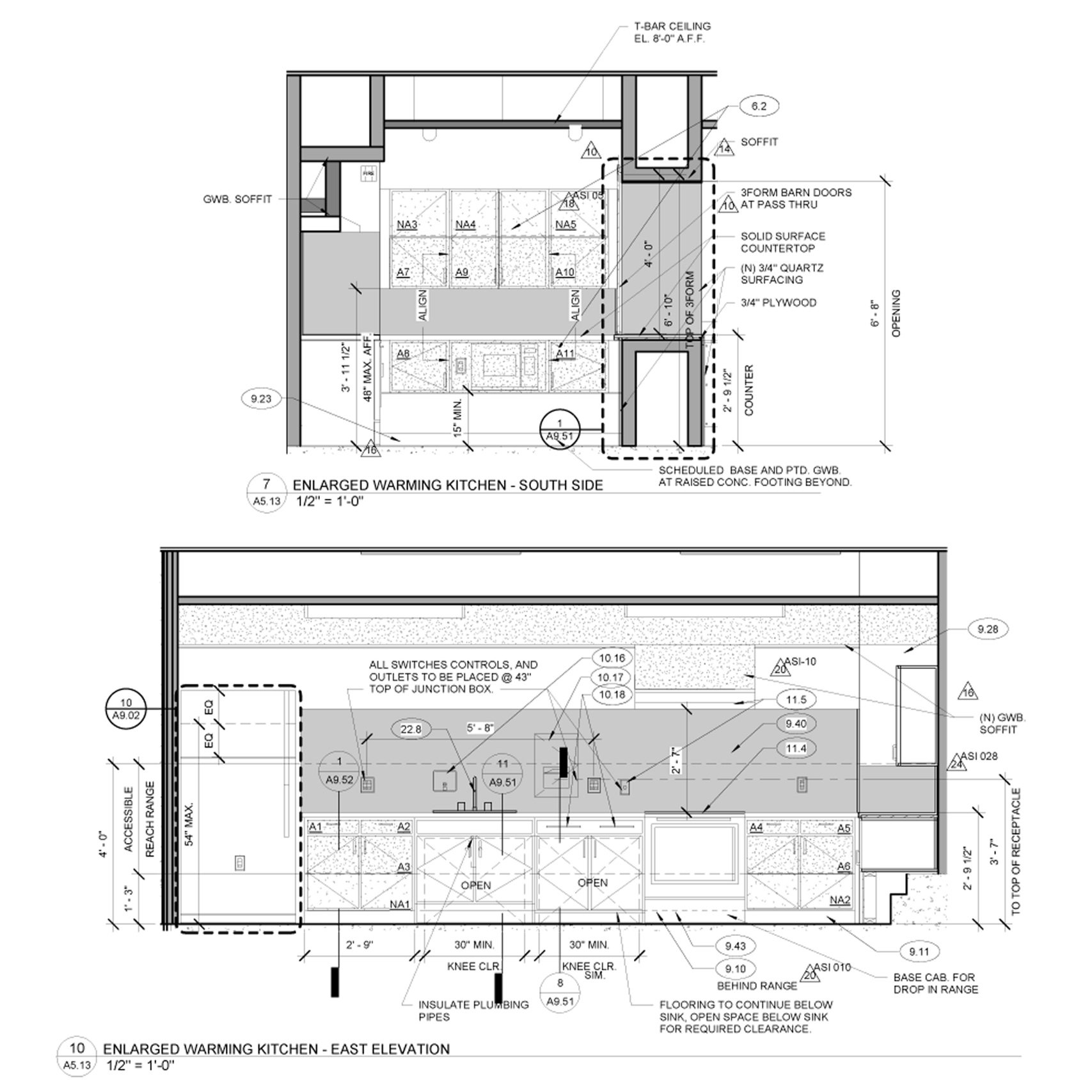

    These construction drawing details of the community room kitchen are examples of the drawings I developed in Revit.

  • FINISHES + FURNITURE

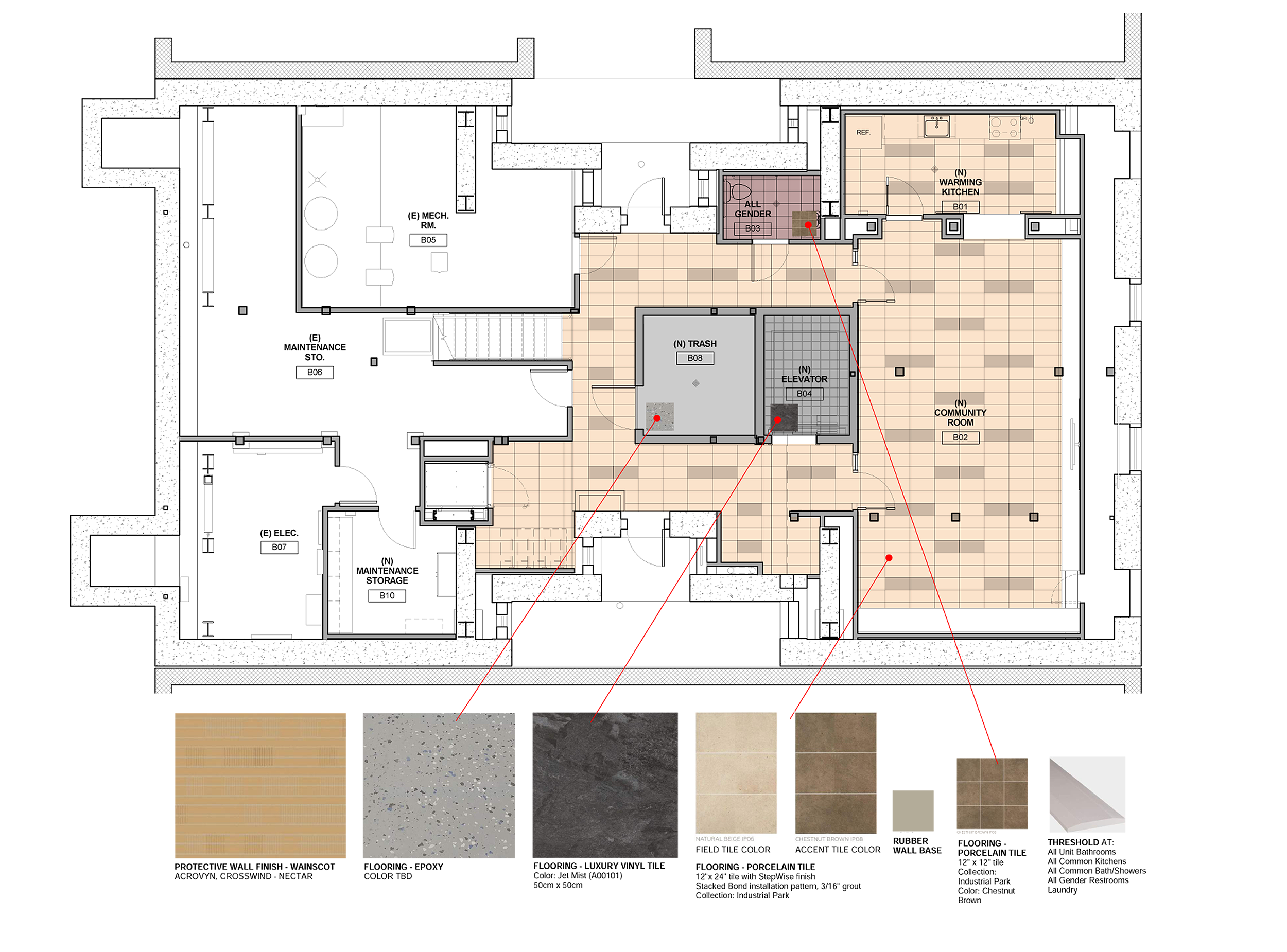

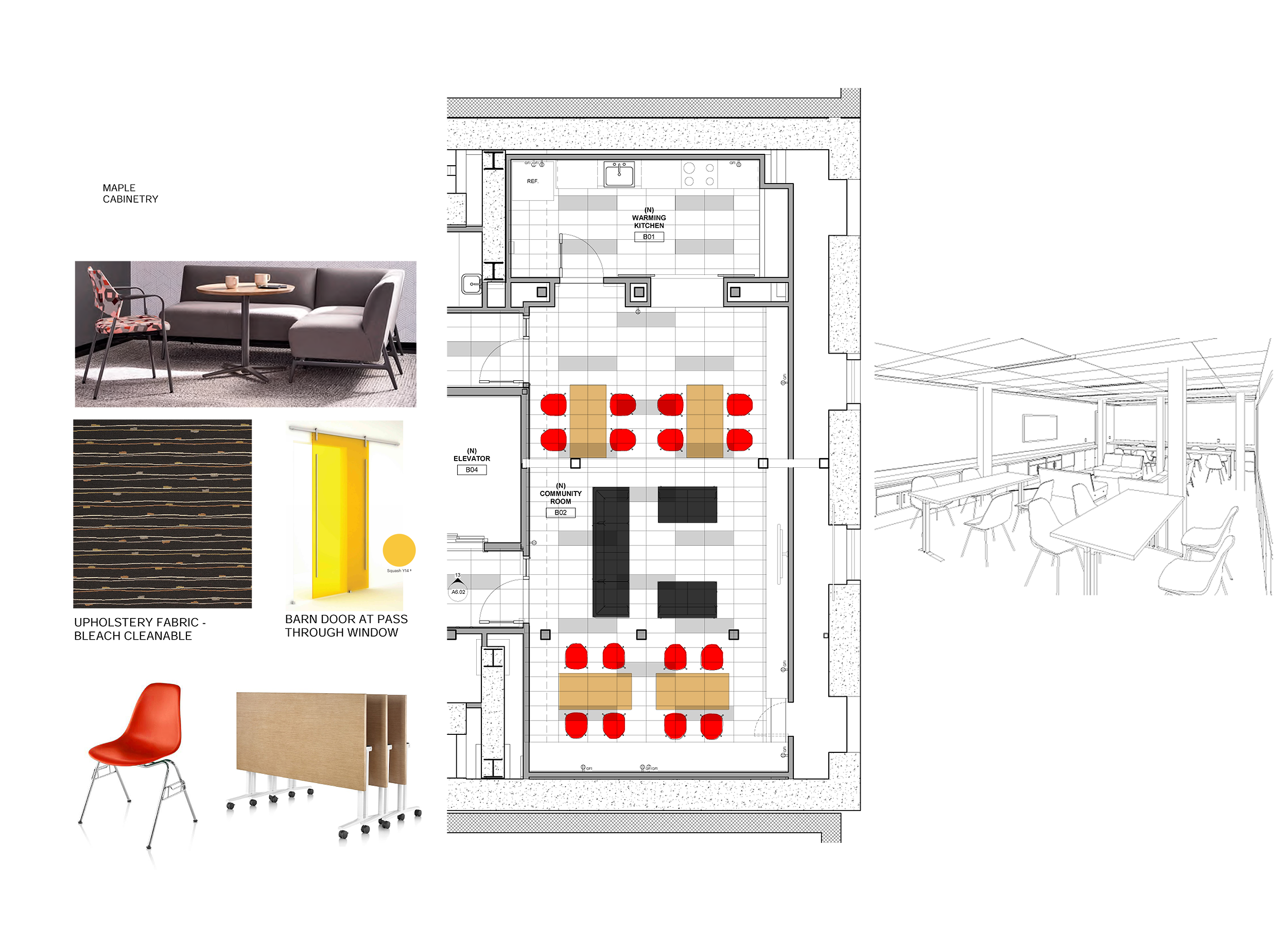

    Throughout the project, I sourced a variety of finishes such as flooring materials, light fixtures, and plumbing fixtures. I also worked with multiple furniture vendors to select the final pieces for the project.
